Quick answer: HTV peels after washing because the adhesive never fully bonded, usually from under-pressing or wrong temperature. Most failures trace to a cold press, skipped pre-press, or hot first wash within 24 hours.
Peeling HTV is the single most frustrating thing in the heat press world. You spend 20 minutes on a shirt, the design looks perfect, and two washes later a corner lifts. By the fifth wash it’s curling like an old sticker. I’ve rebuilt my press routine three times over the last couple years chasing this exact problem, and I can tell you the fix is almost never what beginners assume. It’s not “cheap vinyl.” It’s process.
This guide walks through the real reasons HTV fails in the wash and what to change on your next press. If you follow all five sections, your next shirt should survive 50+ wash cycles without lifting.
Why Does HTV Peel Off After Washing in the First Place?
HTV peels after washing because the adhesive layer never fully bonded to the fabric fibers during the initial press. A proper bond requires three things happening at once: correct temperature, correct dwell time, and correct pressure on a dry, preheated surface.
When any one of those is off, the vinyl sits on top of the fabric instead of melting into it. It looks fine at first because the carrier sheet holds it flat. Then the wash cycle introduces water, agitation, and heat, and the weak bond gives up at the edges. Once an edge lifts, the rest peels fast.
Here’s what I see most often in beginner failures:

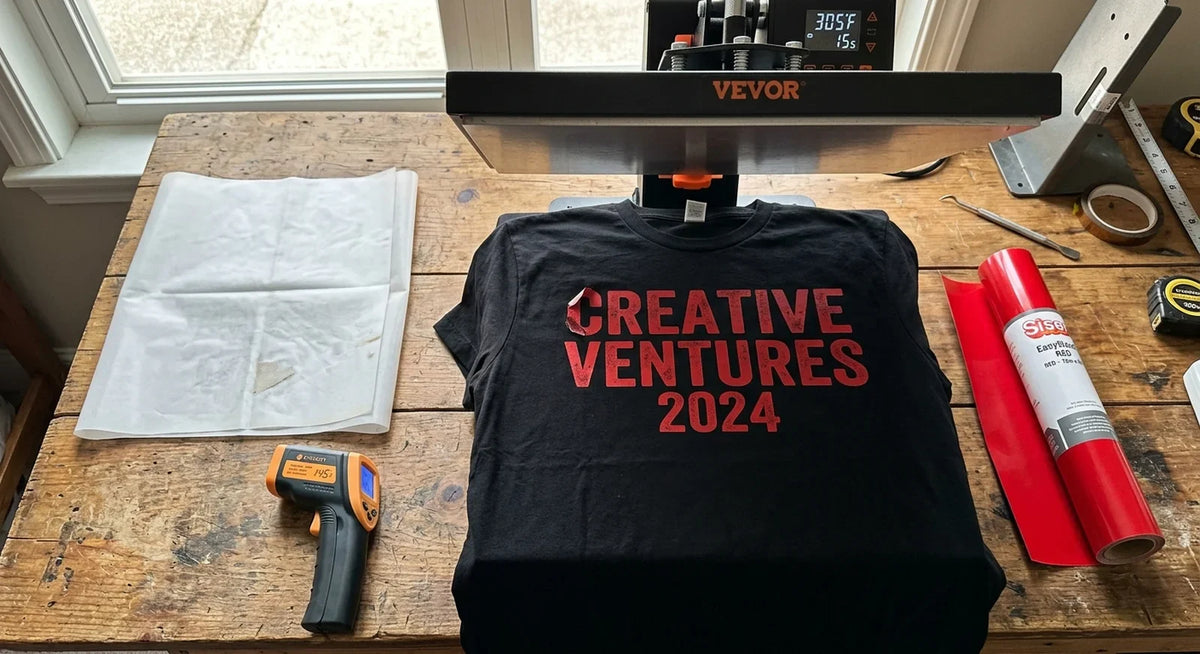

- Temperature too low. A press that reads 305F at the dial may only be pushing 280F at the platen. A cheap IR thermometer will tell you the truth in about four seconds.
- Time too short. Most standard HTV needs 10 to 15 seconds. Glitter and holographic need longer, often 20 seconds. Pressing for 8 seconds because “it looked stuck” is the fastest way to lose a shirt.
- Pressure too light. Clamshell presses need firm pressure. If you can close the press with one finger, it’s too loose.
- Damp or unwashed fabric. New shirts carry factory sizing that blocks adhesive. Moisture flashes to steam between the vinyl and fibers, preventing contact.
Peeling isn’t random. It’s physics failing somewhere in that stack.
What Temperature and Time Actually Bond HTV Permanently?
Standard siser-style HTV bonds at 305F for 10 to 15 seconds with medium-firm pressure. Specialty vinyl needs adjusted settings, and a 10% margin in either direction can mean the difference between a shirt that lasts 50 washes and one that fails in five.
The real trick is matching settings to the specific vinyl plus the specific fabric. I keep a cheap laminated cheat sheet on the wall next to my press. Here’s the short version:
- Standard PU HTV on cotton: 305F, 10 to 15 seconds, medium pressure.
- Glitter HTV on cotton: 320F, 15 to 20 seconds, medium pressure.
- Holographic HTV on cotton: 305F, 15 seconds, firm pressure.
- Standard HTV on polyester: 270F, 10 seconds, medium pressure (higher heat scorches poly).
- Standard HTV on 50/50 blends: 290F, 12 seconds, medium pressure.
If you need the full breakdown with real temperatures for every fabric type, our HTV heat press temperature guide for cotton, polyester, and blends covers every common combination.
One more thing people miss: always do a 3-second post-press after removing the carrier. Cover the design with a protective sheet and press again for 3 seconds at the same temperature. This locks the adhesive down after the initial carrier pull stresses the bond.
How Does Fabric Choice Affect HTV Durability?
Fabric fiber content dictates how well HTV adhesive can grip. Natural fibers like 100% cotton hold HTV best because adhesive can flow between the fibers and mechanically lock in. Slick synthetics repel adhesive and need lower-temperature vinyl to avoid scorching the fabric itself.
Here’s the hierarchy I’ve sorted out after testing maybe 200 shirts:
Best for HTV longevity:
- 100% ring-spun cotton (combed, tight weave)
- Cotton/poly blends around 60/40
- Tri-blends (cotton, poly, rayon) if you press slightly cooler
Harder to work with:
- 100% polyester performance fabrics (must use low-temp HTV)
- Nylon (needs specialty HTV designed for synthetics)
- Waterproof or treated fabrics (usually won’t bond at all)
The FTC’s care label rule requires fiber content on every garment sold in the U.S. Read the tag before you press. I’ve had customers bring me “cotton” shirts that were actually 65% polyester, and the failure was baked in from the first press.
One more note on fabric prep: pre-wash new garments without fabric softener. Factory sizing and softener residue both block adhesive bond. Wash, dry, then press. Don’t skip this step even if the shirt looks clean.
Should You Use a Cover Sheet When Pressing HTV?
Yes, always use a protective sheet on the first press and a mandatory post-press. A quality PTFE or silicone sheet prevents the platen from melting the vinyl’s carrier sheet and protects specialty finishes like glitter and holographic from dulling under direct heat.
A good cover sheet does four jobs at once:
- Distributes heat evenly across the design
- Prevents the platen from picking up adhesive residue
- Protects the top surface of specialty vinyl
- Lets you reuse the same sheet for hundreds of presses
Parchment paper works in a pinch, but it’s a bad long-term solution. It scorches at 400F, leaves fiber residue, and needs replacement constantly. A PTFE sheet handles 500F+ and lasts years. We stock replacement sheets in the PTFE and FEP nonstick material collection alongside sized precuts for standard platens.
If you’re not sure which nonstick material fits your press, our breakdown on how to choose nonstick paper for heat press compares PTFE, silicone, and FEP with real-world durability numbers.
For multi-color stacks specifically, layered HTV needs a different press timing — see how to layered HTV designs require shorter press times to keep the bottom layer from scorching for the full sequence.
How Should You Wash Garments with HTV?
Wait at least 24 hours before the first wash, then turn the garment inside out and wash cold on a gentle cycle. Tumble dry low or hang dry. Never use bleach, fabric softener, or high heat in the dryer, and never iron directly on the design.
The first 24 hours matter because the adhesive is still curing at a molecular level after pressing. Washing too early, especially in warm water, can shock the bond before it finishes setting. The American Cleaning Institute publishes water temperature guidance for fabric care, and their cold-water recommendation (80 to 90F) is the right zone for HTV-printed garments too.
My wash rules for every shirt that leaves my shop:
- First wash: Wait 24 to 48 hours, inside out, cold water, gentle cycle.
- Detergent: Standard liquid, no bleach, no fabric softener, ever.
- Drying: Tumble dry low or hang dry. High heat softens adhesive.
- Ironing: Never directly. If needed, iron inside out or cover with a press cloth.
- Long-term: Same rules apply for the life of the garment.
Customer reviews on poorly-washed HTV shirts show the same pattern: bleach exposure, hot drying, and first-wash shock account for most of the failures reported. Good prep plus good washing equals 50+ cycles without peel. Bad washing can kill a perfect press in three cycles.
If you’re selling to clients, include a small care tag or printed card with every garment. A single tag has saved me dozens of return emails.
Is Peeling HTV Ever Actually the Vinyl’s Fault?
Rarely. In my experience, 90% of “bad vinyl” calls trace back to technique or fabric, not the material. The other 10% is usually counterfeit product, expired stock, or vinyl stored in extreme temperatures.
Signs your vinyl itself is the problem:
- Adhesive side looks chalky or dusty (expired or heat-damaged in storage)
- Carrier sheet lifts unevenly even at correct temp and time
- Multiple colors from the same batch fail identically
If you’ve verified your press temperature with an IR thermometer, pre-pressed, used correct time and pressure, and the vinyl still won’t bond, then yes, replace the roll. But test one more time with a fresh piece at the max recommended temperature before blaming the product.
For bulk crafters doing 50+ shirts a week, buying in rolls is both cheaper and more consistent. Roll stock comes from a single production batch, so if you dial in settings once, they hold across the whole roll. Our bulk pricing collection stocks case-quantity HTV rolls with consistent batch numbers.
One side problem worth mentioning: if your edges are lifting but the center is solid, check out our guide on how to stop heat press bleed-through. Bleed-through and edge-lift often share the same root cause: uneven pressure.
Shop Heat Press Supplies
Every durable HTV press starts with two things: a reliable nonstick cover sheet and consistent vinyl. Our heat press supplies collection stocks PTFE sheets, silicone pads, and replacement cover sheets sized for standard platens. For specialty vinyl, cutter mats, and sublimation accessories, browse our heat press and vinyl craft supplies lineup. Both collections ship same-day on orders placed before 2pm CST.
The Fix That Actually Works
Peeling HTV is almost always a process problem, not a material problem. Get your temperature verified with an IR thermometer, pre-press to remove moisture, use a cover sheet for every press, do the 3-second post-press, and follow the 24-hour wash rule. Do those five things and your shirts will outlast the fabric underneath them. Skip any one of them and you’re rolling dice.
The stickers-vs-HTV durability problem has a cousin in the vinyl sticker world, by the way. If you also do stickers and see edge-lift there, the research in our piece on why vinyl stickers peel and how to fix it covers the adhesive science that applies to both.
For shops choosing PTFE thickness, our PTFE sheet thickness guide compares 5 mil, 10 mil, and 15 mil by cycle cost.
